FF108減速電機詳細信息

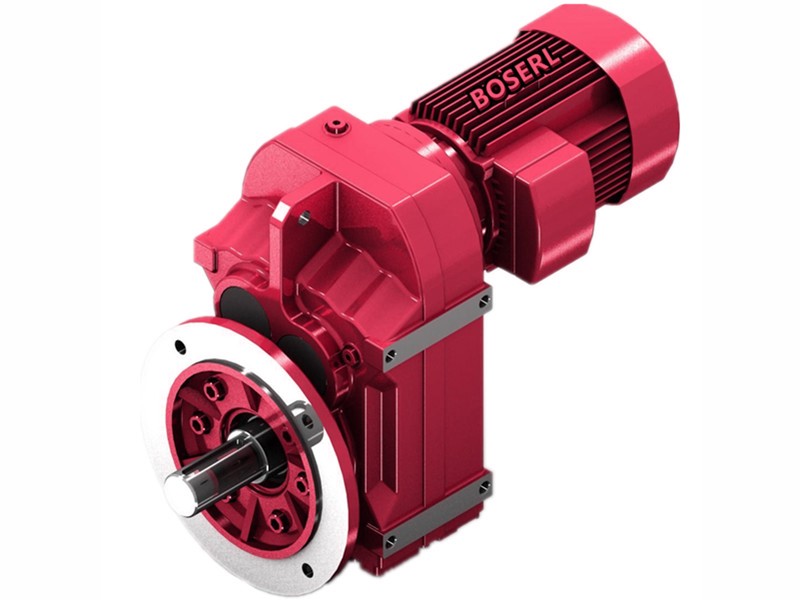

FF108減速電機
訂購熱線：13360667204
FF108減速電機基座參數計算公式：齒輪減速馬達
轉角滾筒輸送帶參數：負載56000Kg，傳送筒直徑φ270mm，轉動速度0.78m/s
運輸速度0.78m×60s=46.8m每分鐘
3.14(圓周率)×0.27m(傳送筒直徑φ270mm)=0.628m
46.8m÷0.628m=74.52r/min輸出轉數
傳送物料56000Kg換算成N=548800n
548800n×0.135傳送筒半徑×0.06摩擦系數=4445.28N.m輸出扭矩
1400電機輸入轉速÷74.52r/min=18.79減速比
4445.28N.m輸出扭矩÷18.79減速比=236.58N.m電機扭矩
236.58N.m電機扭矩換算成電機功率=37.55KW左右
對應的FF108減速電機功率型號：
型號：FF108-BEJ45KW
減速比：19.2
輸出轉數：77rpm
輸出扭矩：5580N.m
安全系數：1.4

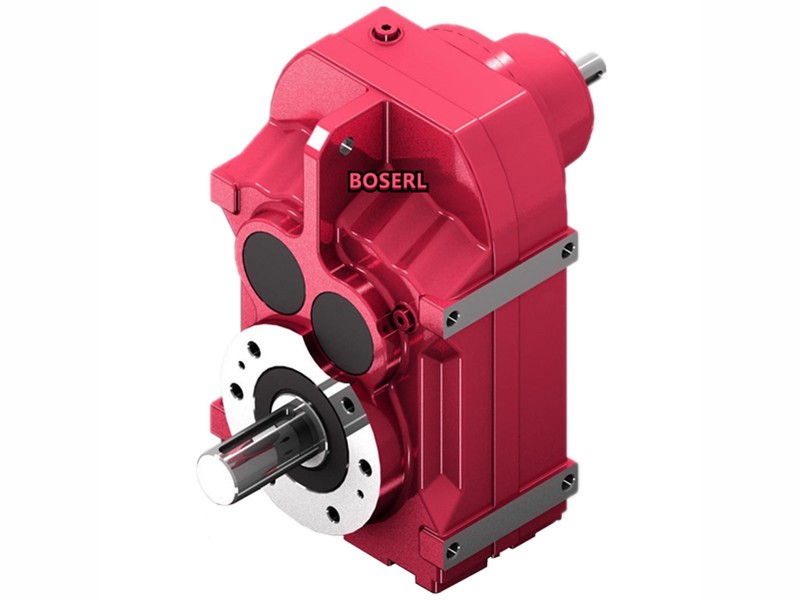

FF108減速電機基座尺寸：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）平行軸斜齒輪減速機
FF108平行軸減速機型號：
FF108減速電機型號參數：剎車電機減速機
FF108減速機配2.2KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| FF108-Y2.2KW | 254.40 | 2.2KW | 434kg | 58900N |
| FF108-Y2.2KW | 215.37 | 2.2KW | 434kg | 60100N |
| FF108-Y2.2KW | 199.31 | 2.2KW | 434kg | 60500N |
| FF108-Y2.2KW | 178.64 | 2.2KW | 434kg | 61100N |
FF108減速機配3KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| FF108-Y3KW | 254.40 | 3KW | 437kg | 56300N |
| FF108-Y3KW | 215.37 | 3KW | 437kg | 57900N |
| FF108-Y3KW | 199.31 | 3KW | 437kg | 58600N |
| FF108-Y3KW | 178.64 | 3KW | 437kg | 59400N |
| FF108-Y3KW | 161.28 | 3KW | 437kg | 60100N |
FF108減速機配4KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| FF108-Y4KW | 254.40 | 4KW | 448kg | 52400N |
| FF108-Y4KW | 215.37 | 4KW | 448kg | 54900N |
| FF108-Y4KW | 199.31 | 4KW | 448kg | 55800N |
| FF108-Y4KW | 178.64 | 4KW | 448kg | 57000N |
| FF108-Y4KW | 161.28 | 4KW | 448kg | 58000N |
| FF108-Y4KW | 146.49 | 4KW | 448kg | 58800N |
| FF108-Y4KW | 129.97 | 4KW | 448kg | 59600N |
| FF108-Y4KW | 117.94 | 4KW | 448kg | 60200N |
FF108減速機配5.5KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| FF108-Y5.5KW | 215.37 | 5.5KW | 462kg | 49600N |
| FF108-Y5.5KW | 199.31 | 5.5KW | 462kg | 51100N |
| FF108-Y5.5KW | 178.64 | 5.5KW | 462kg | 53000N |
| FF108-Y5.5KW | 161.28 | 5.5KW | 462kg | 54400N |
| FF108-Y5.5KW | 146.49 | 5.5KW | 462kg | 55700N |
| FF108-Y5.5KW | 129.97 | 5.5KW | 462kg | 57000N |
| FF108-Y5.5KW | 117.94 | 5.5KW | 462kg | 57900N |
| FF108-Y5.5KW | 101.38 | 5.5KW | 462kg | 59100N |
| FF108-Y5.5KW | 92.47 | 5.5KW | 462kg | 59700N |
| FF108-Y5.5KW | 88.49 | 5.5KW | 462kg | 60000N |
| FF108-Y5.5KW | 83.99 | 5.5KW | 462kg | 60300N |
FF108減速機配7.5KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| FF108-Y7.5KW | 178.64 | 7.5KW | 475kg | 47000N |
| FF108-Y7.5KW | 161.28 | 7.5KW | 475kg | 49300N |
| FF108-Y7.5KW | 146.49 | 7.5KW | 475kg | 51200N |
| FF108-Y7.5KW | 129.97 | 7.5KW | 475kg | 53200N |
| FF108-Y7.5KW | 117.94 | 7.5KW | 475kg | 54600N |
| FF108-Y7.5KW | 101.38 | 7.5KW | 475kg | 56400N |
| FF108-Y7.5KW | 92.47 | 7.5KW | 475kg | 57400N |
| FF108-Y7.5KW | 88.49 | 7.5KW | 475kg | 57800N |
| FF108-Y7.5KW | 83.99 | 7.5KW | 475kg | 58200N |
| FF108-Y7.5KW | 74.52 | 7.5KW | 475kg | 59200N |
| FF108-Y7.5KW | 67.62 | 7.5KW | 475kg | 59800N |
FF108減速機配11KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| FF108-Y11KW | 117.94 | 11KW | 517kg | 47900N |
| FF108-Y11KW | 101.38 | 11KW | 517kg | 51000N |
| FF108-Y11KW | 92.47 | 11KW | 517kg | 52600N |
| FF108-Y11KW | 83.99 | 11KW | 517kg | 54100N |
| FF108-Y11KW | 74.52 | 11KW | 517kg | 55600N |
| FF108-Y11KW | 67.62 | 11KW | 517kg | 56700N |
| FF108-Y11KW | 58.12 | 11KW | 517kg | 56200N |
| FF108-Y11KW | 50.73 | 11KW | 517kg | 54900N |
| FF108-Y11KW | 43.03 | 11KW | 517kg | 53300N |
| FF108-Y11KW | 33.79 | 11KW | 517kg | 50700N |
| FF108-Y11KW | 27.57 | 11KW | 517kg | 48500N |
| FF108-Y11KW | 25.14 | 11KW | 517kg | 47500N |
FF108減速機配15KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| FF108-Y15KW | 92.47 | 15KW | 537kg | 46000N |
| FF108-Y15KW | 88.49 | 15KW | 537kg | 47100N |
| FF108-Y15KW | 83.99 | 15KW | 537kg | 48400N |
| FF108-Y15KW | 74.52 | 15KW | 537kg | 50800N |
| FF108-Y15KW | 67.62 | 15KW | 537kg | 52600N |
| FF108-Y15KW | 58.12 | 15KW | 537kg | 52200N |
| FF108-Y15KW | 50.73 | 15KW | 537kg | 51500N |
| FF108-Y15KW | 43.03 | 15KW | 537kg | 50300N |
| FF108-Y15KW | 37.61 | 15KW | 537kg | 49300N |
| FF108-Y15KW | 31.80 | 15KW | 537kg | 47900N |
| FF108-Y15KW | 33.79 | 15KW | 537kg | 48400N |
| FF108-Y15KW | 27.57 | 15KW | 537kg | 46700N |
| FF108-Y15KW | 25.14 | 15KW | 537kg | 45800N |
| FF108-Y15KW | 21.76 | 15KW | 537kg | 44500N |
FF108減速機配18.5KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| FF108-Y18.5KW | 74.52 | 18.5KW | 579kg | 46200N |
| FF108-Y18.5KW | 67.62 | 18.5KW | 579kg | 48500N |
| FF108-Y18.5KW | 58.12 | 18.5KW | 579kg | 48700N |
| FF108-Y18.5KW | 50.73 | 18.5KW | 579kg | 48400N |
| FF108-Y18.5KW | 43.03 | 18.5KW | 579kg | 47700N |
| FF108-Y18.5KW | 37.61 | 18.5KW | 579kg | 47000N |
| FF108-Y18.5KW | 31.80 | 18.5KW | 579kg | 46000N |
| FF108-Y18.5KW | 33.79 | 18.5KW | 579kg | 46400N |
| FF108-Y18.5KW | 27.57 | 18.5KW | 579kg | 45000N |
| FF108-Y18.5KW | 25.14 | 18.5KW | 579kg | 44300N |
| FF108-Y18.5KW | 21.76 | 18.5KW | 579kg | 43200N |
FF108減速機配22KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| FF108-Y22KW | 58.12 | 22KW | 587kg | 45200N |
| FF108-Y22KW | 50.73 | 22KW | 587kg | 45300N |
| FF108-Y22KW | 43.03 | 22KW | 587kg | 45100N |
| FF108-Y22KW | 37.61 | 22KW | 587kg | 44700N |
| FF108-Y22KW | 31.80 | 22KW | 587kg | 44000N |
| FF108-Y22KW | 33.79 | 22KW | 587kg | 44300N |
| FF108-Y22KW | 27.57 | 22KW | 587kg | 43300N |
| FF108-Y22KW | 25.14 | 22KW | 587kg | 42700N |
| FF108-Y22KW | 21.76 | 22KW | 587kg | 41800N |
| FF108-Y22KW | 19.20 | 22KW | 587kg | 40900N |
FF108減速機配30KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| FF108-Y30KW | 43.03 | 30KW | 655kg | 39200N |
| FF108-Y30KW | 37.61 | 30KW | 655kg | 39600N |
| FF108-Y30KW | 31.80 | 30KW | 655kg | 39700N |
| FF108-Y30KW | 27.57 | 30KW | 655kg | 39500N |
| FF108-Y30KW | 25.14 | 30KW | 655kg | 39300N |
| FF108-Y30KW | 21.76 | 30KW | 655kg | 38800N |
| FF108-Y30KW | 19.20 | 30KW | 655kg | 38300N |
| FF108-Y30KW | 16.58 | 30KW | 655kg | 37600N |
| FF108-Y30KW | 14.67 | 30KW | 655kg | 36900N |
| FF108-Y30KW | 12.33 | 30KW | 655kg | 35800N |
| FF108-Y30KW | 9.96 | 30KW | 655kg | 34400N |
FF108減速機配37KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| FF108-Y37KW | 27.57 | 37KW | 702kg | 36200N |
| FF108-Y37KW | 25.14 | 37KW | 702kg | 36300N |
| FF108-Y37KW | 21.76 | 37KW | 702kg | 36200N |
| FF108-Y37KW | 19.20 | 37KW | 702kg | 36000N |
| FF108-Y37KW | 16.58 | 37KW | 702kg | 35600N |
| FF108-Y37KW | 14.67 | 37KW | 702kg | 35100N |
| FF108-Y37KW | 12.33 | 37KW | 702kg | 34300N |
| FF108-Y37KW | 9.96 | 37KW | 702kg | 33200N |
| FF108-Y37KW | 9.69 | 37KW | 702kg | 32400N |
| FF108-Y37KW | 8.37 | 37KW | 702kg | 31799N |
| FF108-Y37KW | 7.40 | 37KW | 702kg | 31000N |
| FF108-Y37KW | 6.22 | 37KW | 702kg | 30000N |
FF108減速機配45KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| FF108-Y45KW | 27.57 | 45KW | 737kg | 31500N |
| FF108-Y45KW | 25.14 | 45KW | 737kg | 32600N |
| FF108-Y45KW | 21.76 | 45KW | 737kg | 33200N |
| FF108-Y45KW | 19.20 | 45KW | 737kg | 33300N |
| FF108-Y45KW | 16.58 | 45KW | 737kg | 33300N |
| FF108-Y45KW | 14.67 | 45KW | 737kg | 33100N |
| FF108-Y45KW | 12.33 | 45KW | 737kg | 32600N |
| FF108-Y45KW | 9.96 | 45KW | 737kg | 31900N |
| FF108-Y45KW | 9.69 | 45KW | 737kg | 30900N |
| FF108-Y45KW | 8.37 | 45KW | 737kg | 30400N |
| FF108-Y45KW | 7.40 | 45KW | 737kg | 29900N |
| FF108-Y45KW | 6.22 | 45KW | 737kg | 29000N |
FF108減速電機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：F108減速機
關鍵詞:GFF系列減速器配制動電機一體式_剎車電機減速機_FF系列減速器_制動電機減速機_減速器配抱閘_減速機配抱閘_FF系列減速機_FF型減速機_GFF系列減速機_配剎車減速機_配制動減速機_配抱閘減速機_抱閘電機減速機
FF系列齒輪減速馬達型號：FF28減速機,FF38減速機,FF48減速機,FF68減速機,FF78減速機,FF88減速機,FF98減速機,FF108減速機,FF128減速機,FF158減速機
FF系列電動機減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: FF108減速電機 FF107平行軸減速機 FF107減速機功率 FF107減速機基座尺寸 FF107減速機模型 FF107減速機型號參數
