網站首頁 > BOSERL減速機 > 傘齒輪斜齒輪減速馬達 > KF系列齒輪減速馬達

KF38減速電機詳細信息

prevnext

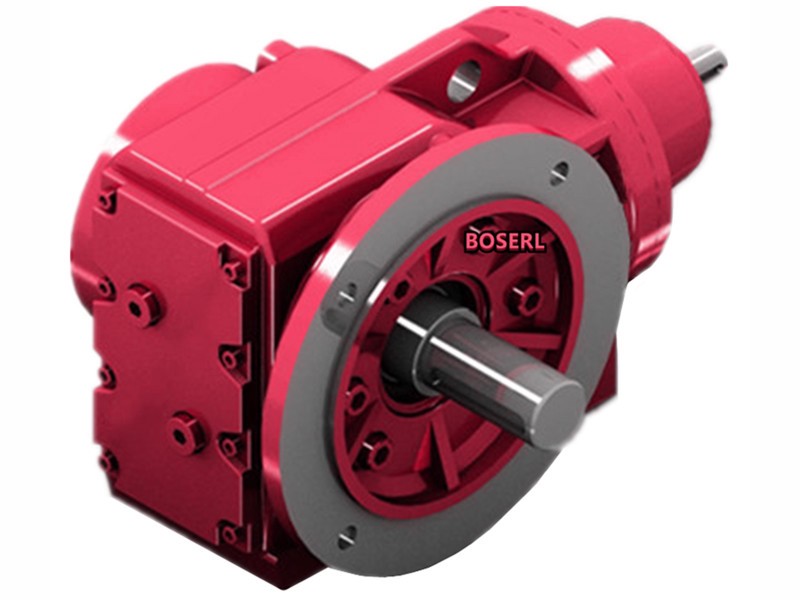

KF38減速電機

訂購熱線：13360667204
  1. 詳細信息

KF38減速電機選型計算：齒輪減速馬達

槳式攪拌機參數：攪動飼料0.12噸，每分鐘攪動158圈，攪拌槳輪直徑47

電機轉數1400÷158圈（輸出轉速）=減速比8.86

攪拌0.12噸=1176N

1176N×0.0235攪拌槳輪半徑=27.636×2攪拌水狀物料扭矩放大兩倍=55.272N.m

49N.m÷8.75減速比=6.24N.m電機扭矩

6.24N.m電機扭矩換算成功率0.99KW以上

對應的KF38減速機選型參數：

型號：KF38-B1.1KW

減速比：8.91

輸出轉數：159轉每分鐘

輸出扭矩：66N.m

安全系數：2.4

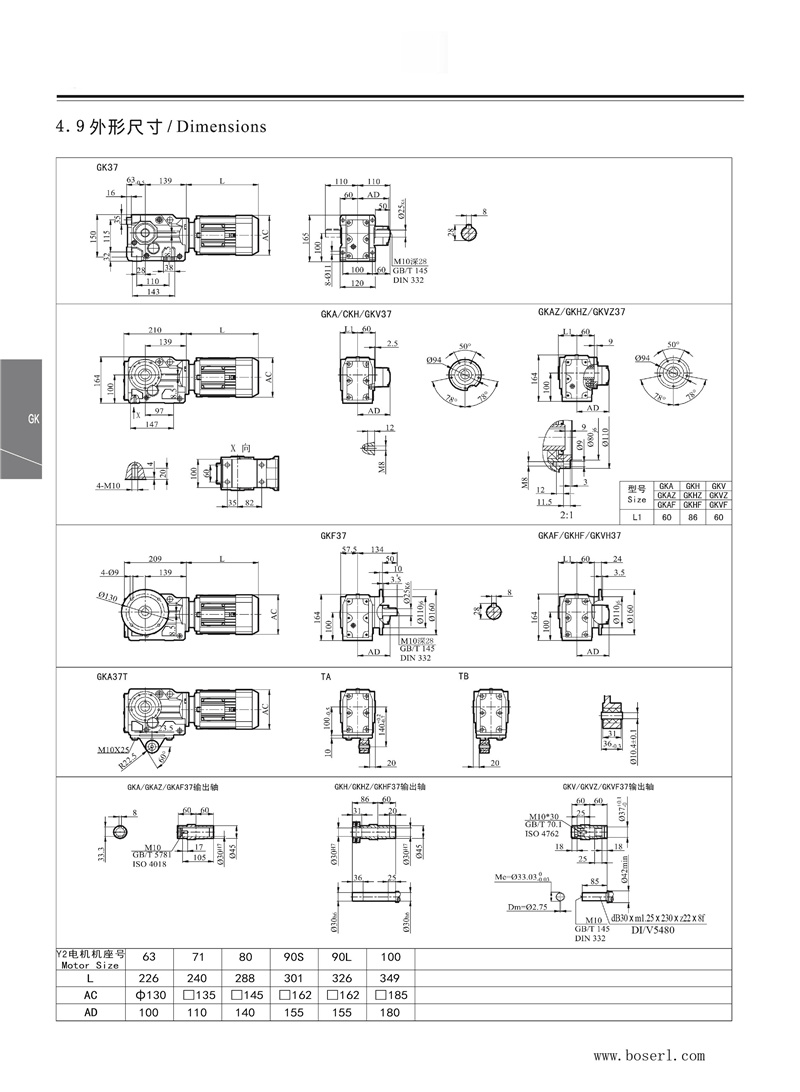

KF38減速電機基座尺寸：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）伺服電機減速機


KF38斜齒輪傘齒輪減速機型號：



KF38減速電機型號參數：直角減速機

KF38減速機配0.12KW電機參數

型號功率轉數扭矩安全系數
K37Y0.12KW0.12kw13rpm88N.m2.3
K37Y0.12KW0.12kw14rpm81N.m2.5
K37Y0.12KW0.12kw16rpm70N.m2.9
K37Y0.12KW0.12kw19rpm60N.m3.3
K37Y0.12KW0.12kw20rpm56N.m3.6
K37Y0.12KW0.12kw24rpm49N.m4.1
K37Y0.12KW0.12kw28rpm41N.m4.8
K37Y0.12KW0.12kw31rpm37N.m5.4
K37Y0.12KW0.12kw36rpm32N.m6.4
K37Y0.12KW0.12kw39rpm30N.m6.8
K37Y0.12KW0.12kw46rpm25N.m8
K37Y0.12KW0.12kw48rpm24N.m8.4
K37Y0.12KW0.12kw55rpm21N.m9.6
K37Y0.12KW0.12kw59rpm19N.m10
K37Y0.12KW0.12kw68rpm17N.m11
K37Y0.12KW0.12kw80rpm14N.m13
K37Y0.12KW0.12kw90rpm13N.m14
K37Y0.12KW0.12kw105rpm11N.m15
K37Y0.12KW0.12kw114rpm10N.m16

KF38減速機配0.18KW電機參數

型號功率轉數扭矩安全系數
K37Y0.18KW0.18kw12rpm138N.m1.45
K37Y0.18KW0.18kw14rpm127N.m1.55
K37Y0.18KW0.18kw16rpm108N.m1.85
K37Y0.18KW0.18kw18rpm94N.m2.1
K37Y0.18KW0.18kw19rpm88N.m2.3
K37Y0.18KW0.18kw23rpm76N.m2.6
K37Y0.18KW0.18kw27rpm65N.m3.1
K37Y0.18KW0.18kw30rpm58N.m3.4
K37Y0.18KW0.18kw35rpm49N.m4
K37Y0.18KW0.18kw37rpm46N.m4.3
K37Y0.18KW0.18kw44rpm39N.m5.1
K37Y0.18KW0.18kw46rpm38N.m5.3
K37Y0.18KW0.18kw53rpm32N.m6.2
K37Y0.18KW0.18kw57rpm30N.m6.4
K37Y0.18KW0.18kw65rpm26N.m7
K37Y0.18KW0.18kw77rpm22N.m8.1
K37Y0.18KW0.18kw86rpm20N.m8.8
K37Y0.18KW0.18kw101rpm17N.m9.7
K37Y0.18KW0.18kw109rpm16N.m10
K37Y0.18KW0.18kw126rpm14N.m12
K37Y0.18KW0.18kw148rpm12N.m14
K37Y0.18KW0.18kw166rpm10N.m15

KF38減速機配0.25KW電機參數

型號功率轉數扭矩安全系數
K37Y0.25KW0.25kw12rpm195N.m1
K37Y0.25KW0.25kw13rpm180N.m1.1
K37Y0.25KW0.25kw16rpm154N.m1.3
K37Y0.25KW0.25kw18rpm133N.m1.5
K37Y0.25KW0.25kw19rpm124N.m1.6
K37Y0.25KW0.25kw22rpm108N.m1.85
K37Y0.25KW0.25kw26rpm91N.m2.2
K37Y0.25KW0.25kw29rpm82N.m2.4
K37Y0.25KW0.25kw34rpm70N.m2.9
K37Y0.25KW0.25kw37rpm65N.m3.1
K37Y0.25KW0.25kw43rpm55N.m3.6
K37Y0.25KW0.25kw45rpm53N.m3.8
K37Y0.25KW0.25kw52rpm46N.m4.4
K37Y0.25KW0.25kw56rpm43N.m4.6
K37Y0.25KW0.25kw64rpm37N.m5
K37Y0.25KW0.25kw76rpm32N.m5.7
K37Y0.25KW0.25kw85rpm28N.m6.2
K37Y0.25KW0.25kw99rpm24N.m6.9
K37Y0.25KW0.25kw107rpm22N.m7.2
K37Y0.25KW0.25kw124rpm19N.m8.3
K37Y0.25KW0.25kw146rpm16N.m9.8
K37Y0.25KW0.25kw163rpm15N.m11
K37Y0.25KW0.25kw191rpm12N.m12
K37Y0.25KW0.25kw204rpm12N.m12

KF38減速機配0.37KW電機參數

型號功率轉數扭矩安全系數
K37Y0.37KW0.37kw14rpm250N.m0.8
K37Y0.37KW0.37kw16rpm210N.m0.95
K37Y0.37KW0.37kw19rpm186N.m1.1
K37Y0.37KW0.37kw20rpm174N.m1.15
K37Y0.37KW0.37kw24rpm150N.m1.35
K37Y0.37KW0.37kw28rpm128N.m1.55
K37Y0.37KW0.37kw31rpm114N.m1.75
K37Y0.37KW0.37kw36rpm97N.m2.1
K37Y0.37KW0.37kw39rpm91N.m2.2
K37Y0.37KW0.37kw46rpm77N.m2.6
K37Y0.37KW0.37kw48rpm74N.m2.7
K37Y0.37KW0.37kw55rpm64N.m3.1
K37Y0.37KW0.37kw59rpm60N.m3.3
K37Y0.37KW0.37kw68rpm52N.m3.6
K37Y0.37KW0.37kw80rpm44N.m4.1
K37Y0.37KW0.37kw90rpm39N.m4.5
K37Y0.37KW0.37kw105rpm34N.m4.9
K37Y0.37KW0.37kw114rpm31N.m5.1
K37Y0.37KW0.37kw132rpm27N.m6
K37Y0.37KW0.37kw155rpm23N.m7
K37Y0.37KW0.37kw173rpm20N.m7.6
K37Y0.37KW0.37kw203rpm17N.m8.6
K37Y0.37KW0.37kw217rpm16N.m8.9
K37Y0.37KW0.37kw257rpm14N.m10

KF38減速機配0.55KW電機參數

型號功率轉數扭矩安全系數
K37Y0.55KW0.55kw24rpm220N.m0.9
K37Y0.55KW0.55kw28rpm190N.m1.05
K37Y0.55KW0.55kw31rpm169N.m1.2
K37Y0.55KW0.55kw36rpm144N.m1.4
K37Y0.55KW0.55kw39rpm135N.m1.5
K37Y0.55KW0.55kw46rpm114N.m1.75
K37Y0.55KW0.55kw48rpm110N.m1.8
K37Y0.55KW0.55kw55rpm95N.m2.1
K37Y0.55KW0.55kw59rpm89N.m2.2
K37Y0.55KW0.55kw68rpm77N.m2.4
K37Y0.55KW0.55kw80rpm65N.m2.8
K37Y0.55KW0.55kw90rpm58N.m3
K37Y0.55KW0.55kw105rpm50N.m3.3
K37Y0.55KW0.55kw114rpm46N.m3.5
K37Y0.55KW0.55kw132rpm40N.m4
K37Y0.55KW0.55kw155rpm34N.m4.7
K37Y0.55KW0.55kw173rpm30N.m5.1
K37Y0.55KW0.55kw203rpm26N.m5.8
K37Y0.55KW0.55kw217rpm24N.m6
K37Y0.55KW0.55kw257rpm20N.m6.9
K37Y0.55KW0.55kw347rpm15N.m8.3

KF38減速機配0.75KW電機參數

型號功率轉數扭矩安全系數
K37Y0.75KW0.75KW32rpm225N.m0.9
K37Y0.75KW0.75KW37rpm193N.m1.05
K37Y0.75KW0.75KW40rpm181N.m1.1
K37Y0.75KW0.75KW47rpm152N.m1.3
K37Y0.75KW0.75KW49rpm146N.m1.35
K37Y0.75KW0.75KW56rpm127N.m1.6
K37Y0.75KW0.75KW60rpm119N.m1.65
K37Y0.75KW0.75KW70rpm102N.m1.8
K37Y0.75KW0.75KW82rpm87N.m2.1
K37Y0.75KW0.75KW92rpm78N.m2.2
K37Y0.75KW0.75KW108rpm66N.m2.5
K37Y0.75KW0.75KW116rpm62N.m2.6
K37Y0.75KW0.75KW134rpm53N.m3
K37Y0.75KW0.75KW158rpm45N.m3.5
K37Y0.75KW0.75KW177rpm40N.m3.8
K37Y0.75KW0.75KW207rpm34N.m4.4
K37Y0.75KW0.75KW221rpm32N.m4.5
K37Y0.75KW0.75KW263rpm27N.m5.2
K37Y0.75KW0.75KW354rpm20N.m6.2

KF38減速機配1.1KW電機參數

型號功率轉數扭矩安全系數
K37Y1.1KW1.1KW47rpm220N.m0.9
K37Y1.1KW1.1KW56rpm186N.m1.05
K37Y1.1KW1.1KW60rpm174N.m1.1
K37Y1.1KW1.1KW70rpm150N.m1.25
K37Y1.1KW1.1KW82rpm128N.m1.4
K37Y1.1KW1.1KW92rpm114N.m1.55
K37Y1.1KW1.1KW108rpm98N.m1.7
K37Y1.1KW1.1KW116rpm90N.m1.75
K37Y1.1KW1.1KW134rpm78N.m2
K37Y1.1KW1.1KW158rpm66N.m2.4
K37Y1.1KW1.1KW177rpm59N.m2.6
K37Y1.1KW1.1KW207rpm51N.m3
K37Y1.1KW1.1KW221rpm47N.m3.1
K37Y1.1KW1.1KW263rpm40N.m3.5
K37Y1.1KW1.1KW354rpm30N.m4.2

KF38減速機配1.5KW電機參數

型號功率轉數扭矩安全系數
K37Y1.5KW1.5KW60rpm235N.m0.8
K37Y1.5KW1.5KW69rpm205N.m0.9
K37Y1.5KW1.5KW82rpm176N.m1.05
K37Y1.5KW1.5KW91rpm157N.m1.1
K37Y1.5KW1.5KW107rpm134N.m1.25
K37Y1.5KW1.5KW115rpm124N.m1.3
K37Y1.5KW1.5KW133rpm107N.m1.5
K37Y1.5KW1.5KW157rpm91N.m1.75
K37Y1.5KW1.5KW176rpm81N.m1.9
K37Y1.5KW1.5KW206rpm70N.m2.2
K37Y1.5KW1.5KW220rpm65N.m2.2
K37Y1.5KW1.5KW261rpm55N.m2.6
K37Y1.5KW1.5KW352rpm41N.m3.1

KF38減速機配2.2KW電機參數

型號功率轉數扭矩安全系數
K37Y2.2KW2.2KW107rpm196N.m0.85
K37Y2.2KW2.2KW133rpm157N.m1
K37Y2.2KW2.2KW157rpm134N.m1.2
K37Y2.2KW2.2KW176rpm119N.m1.3
K37Y2.2KW2.2KW206rpm102N.m1.45
K37Y2.2KW2.2KW220rpm96N.m1.5
K37Y2.2KW2.2KW261rpm80N.m1.75
K37Y2.2KW2.2KW352rpm60N.m2.1

KF38減速機配3KW電機參數

型號功率轉數扭矩安全系數
K37Y3KW3KW157rpm182N.m0.9
K37Y3KW3KW176rpm163N.m0.95
K37Y3KW3KW206rpm139N.m1.1
K37Y3KW3KW220rpm130N.m1.1
K37Y3KW3KW261rpm110N.m1.3
K37Y3KW3KW352rpm81N.m1.55

KF38減速電機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約

推薦類似型號：K38減速機

關鍵詞:交流減速機配電機一體式_大扭力減速機_伺服電機減速機_伺服減速機_伺服電機減速器_伺服減速器_伺服電機減速機一體機_伺服減速機一體式_大扭力減速器_GKF系列減速機_KF系列減速機_伺服電機減速機一體式_伺服電機減速機一體化_KF系列減速器

KF系列齒輪減速馬達型號：KF38減速機,KF48減速機,KF58減速機,KF68減速機,KF78減速機,KF88減速機,KF98減速機,KF108減速機,KF128減速機,KF158減速機,KF167減速機,KF187減速機

KF系列直角減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間

如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求



標簽:   KF38減速電機 KF37斜齒輪傘齒輪減速機 KF37減速機功率 KF37減速機基座尺寸 KF37減速機模型 KF37減速機型號參數

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
KF38減速電機模型基座尺寸下載 點擊下載
KF38減速電機型號參數下載 點擊下載
